Hour 2 - Wiring and Assembly #

Overview/Agenda #

  • Session 1 - Getting started and design
  • Session 2 - Wiring and Assembly (You are here!)
  • Session 3 - Final Assembly and Controllers
  • Session 4 - FIGHT

Assembling your robot #

  • Make sure it fits
  • Wiring
  • Drivetrain installation
  • Weapon installation
  • Hope it’s not too heavy
  • Freak out

Wiring #

Common Electrical Setup #

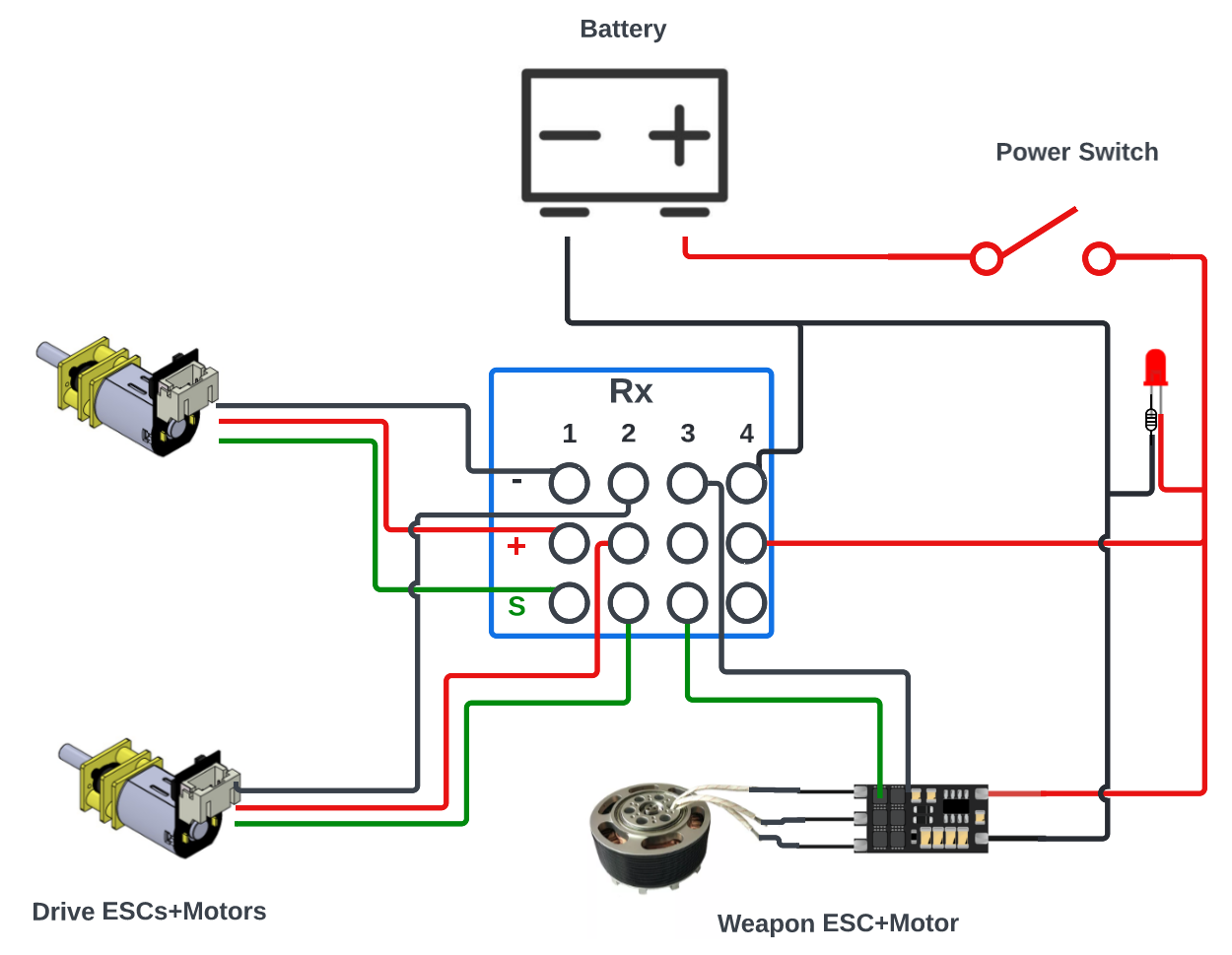

Basic Electrical Setup

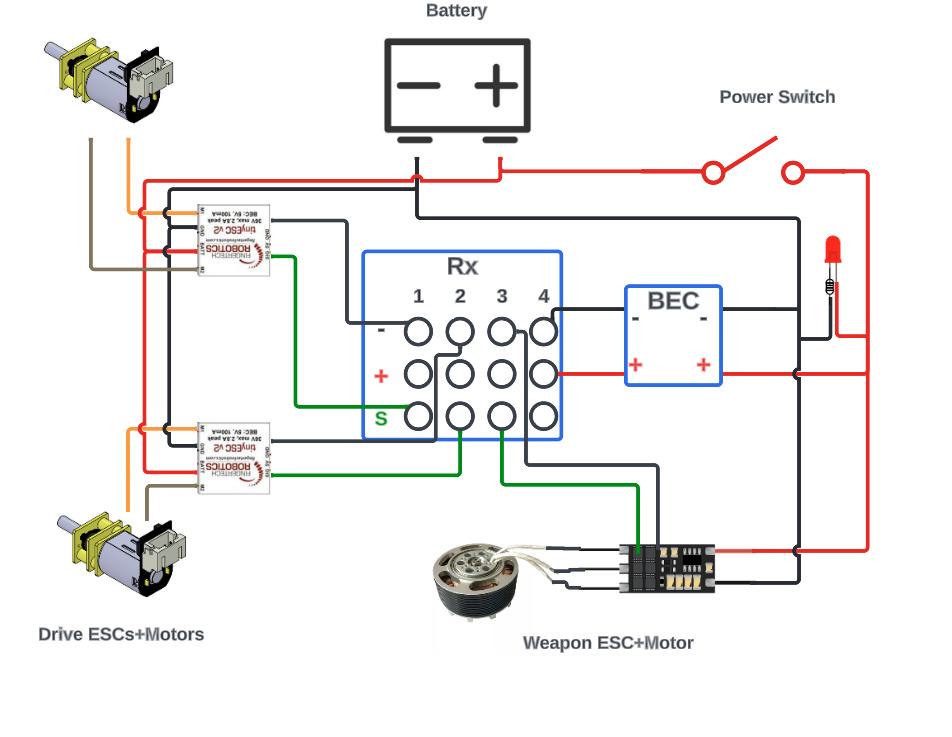

Electrical Setup with built-in ESCs #

Electrical Setup 2

Assembly #

Drivetrain Install #

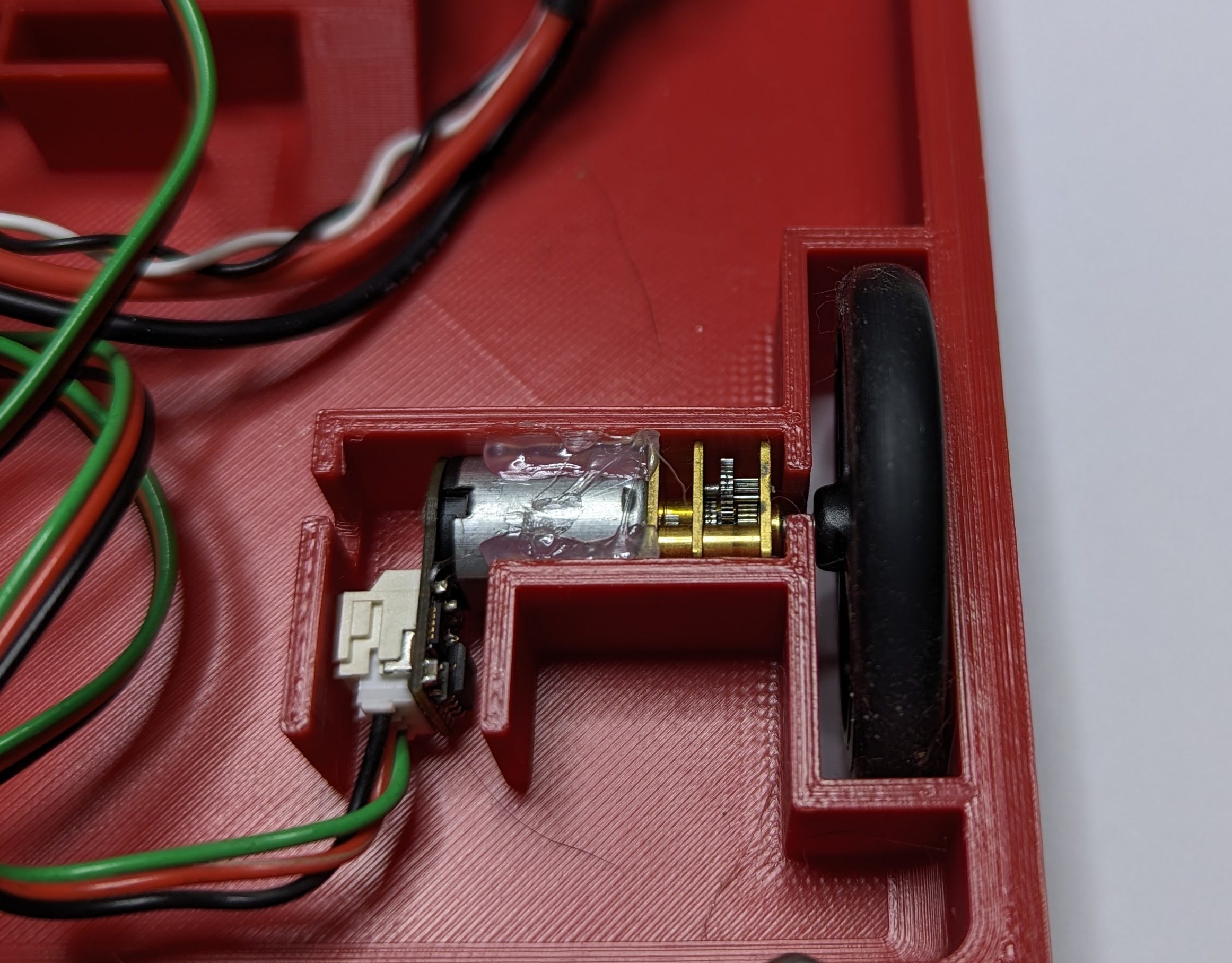

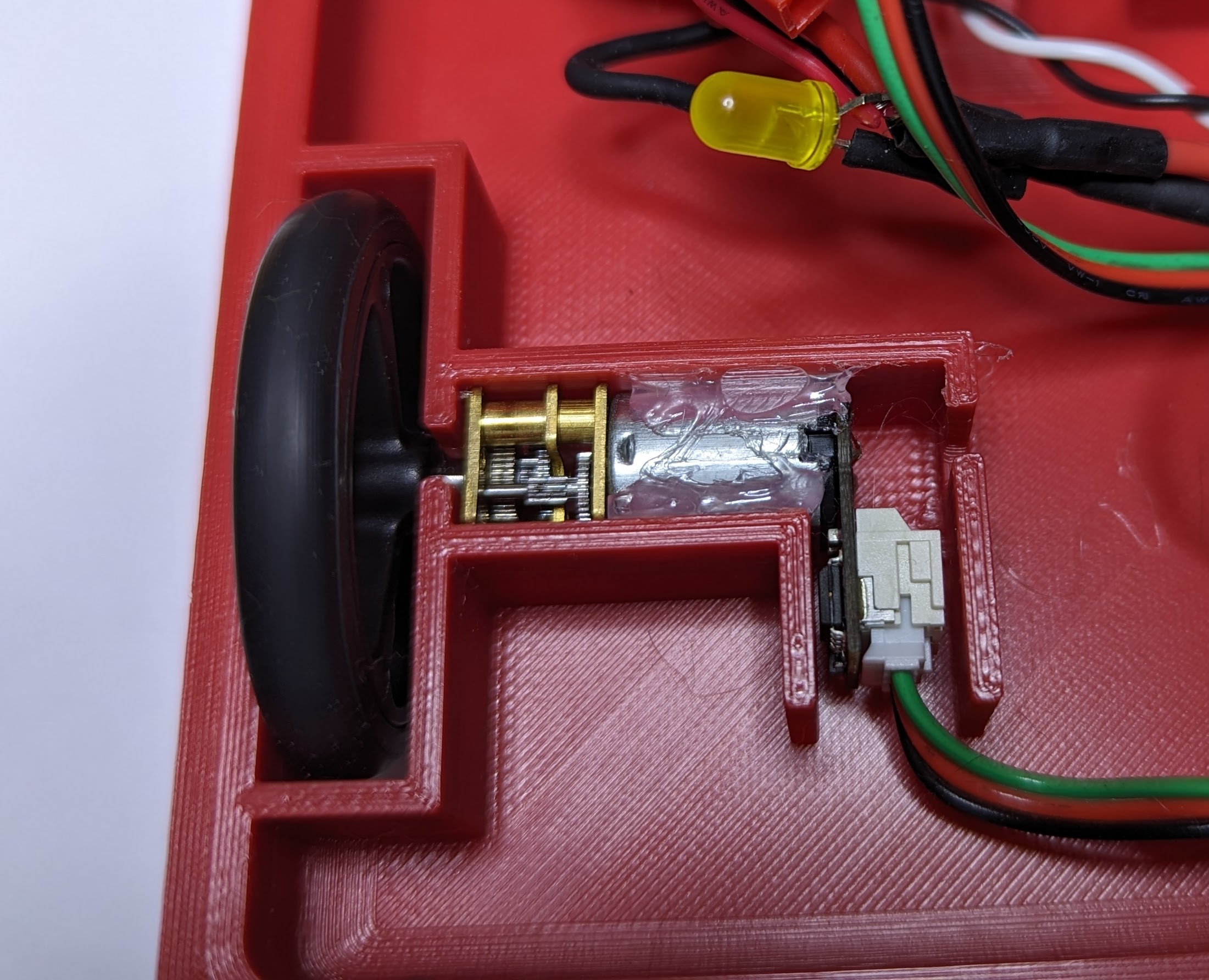

Motor Install Motor Install

Weapon Install #

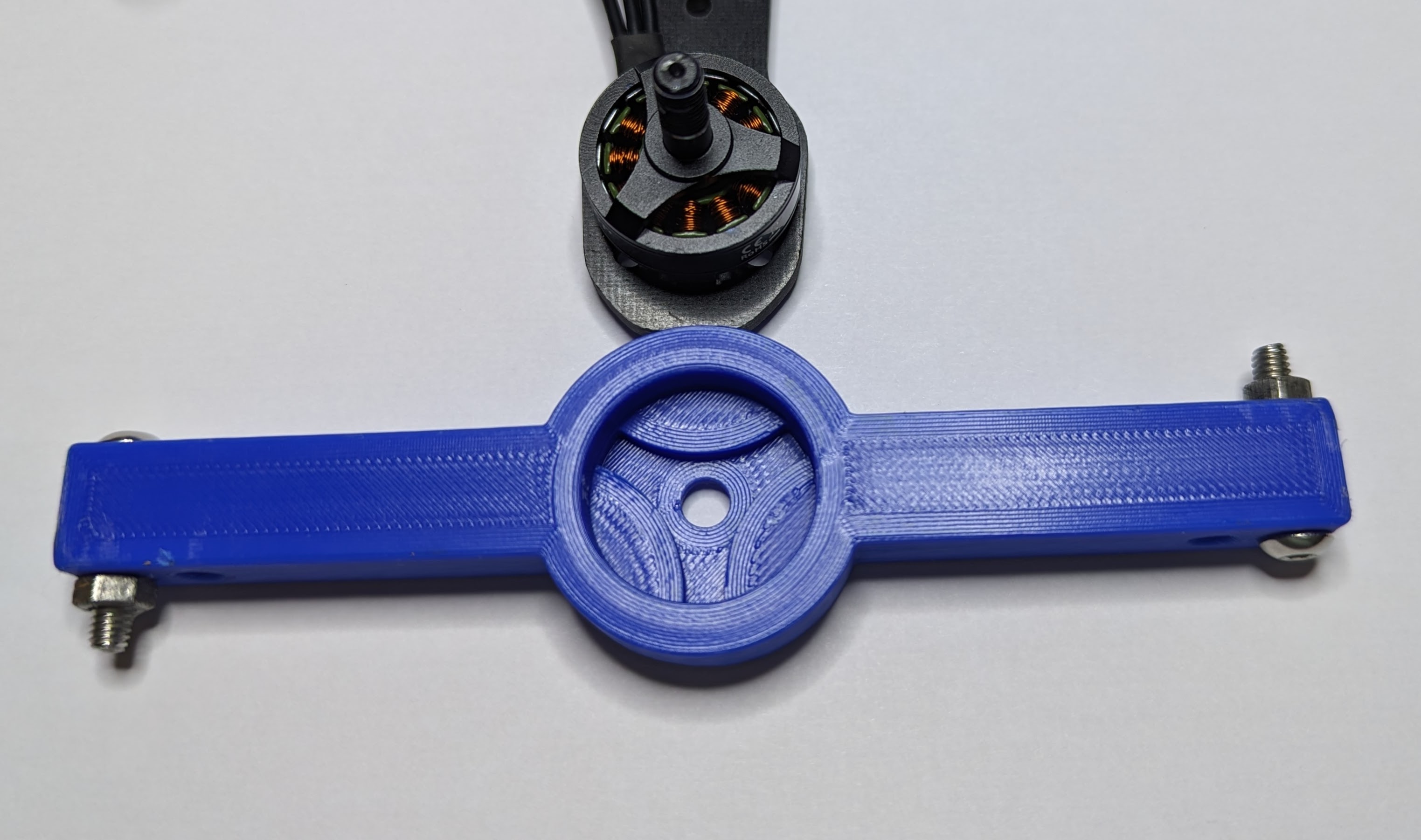

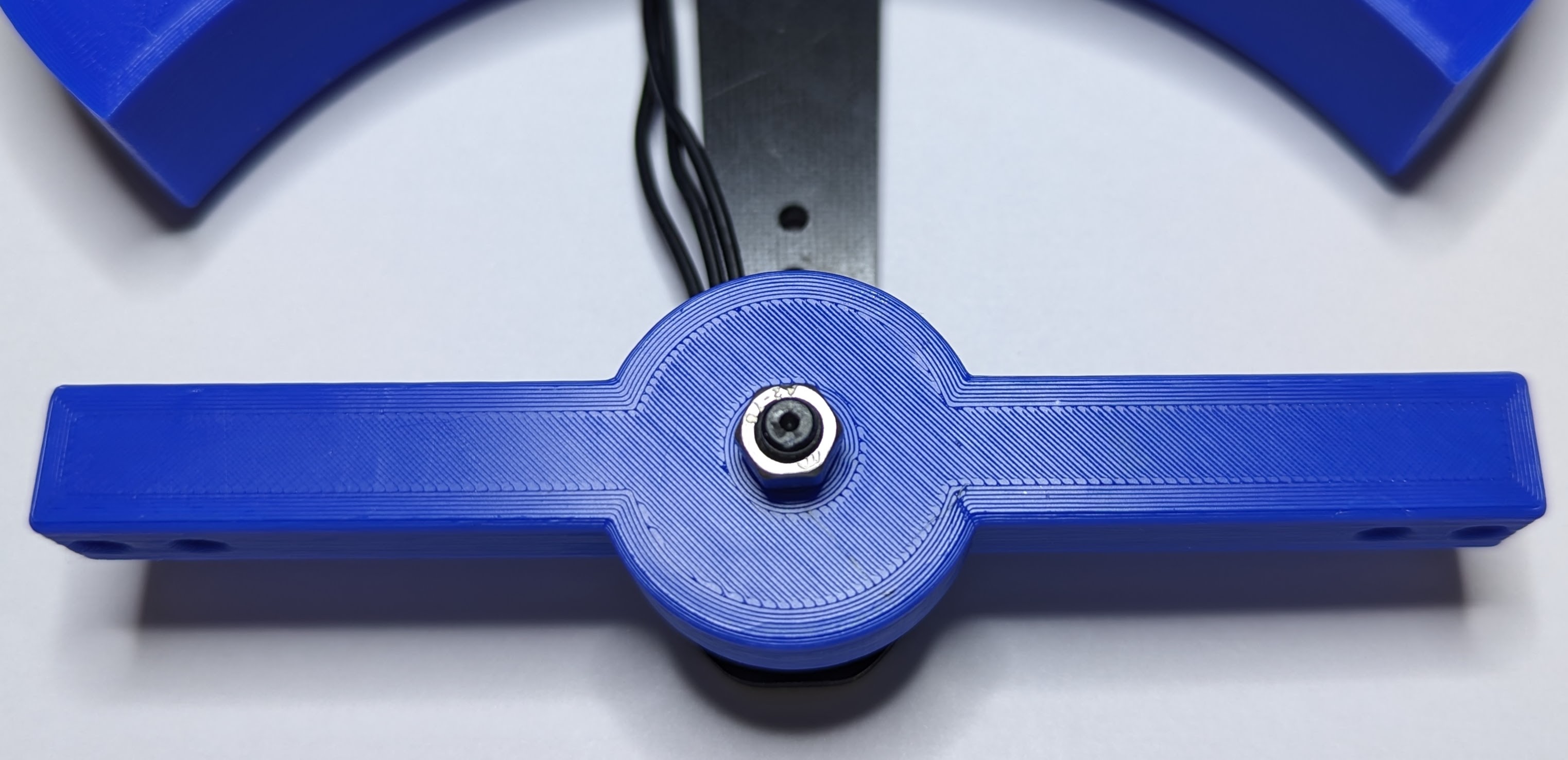

Weapon Install Weapon Install

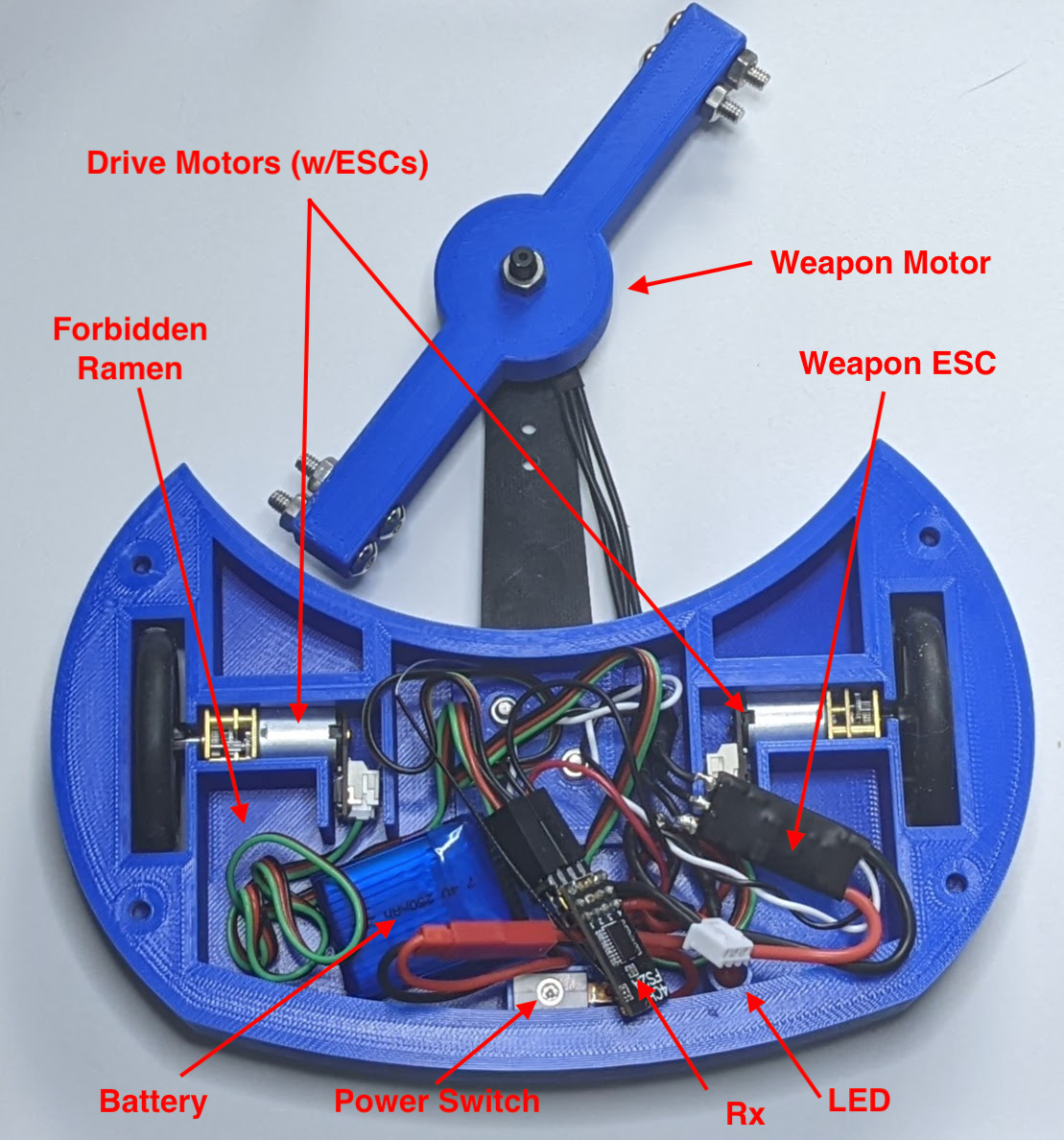

It fits! (sorta) #

Wiring
